Project Description

Box storage aspire system

The aspire system for open boxes is also a direct ventilation system. The air in the room is conditioned and then sucked through the boxes. All kinds of standard open boxes can be used for this system. Advantage of the system is that same boxes can be used what is used for transport and room ventilation. Quite a flexible system for different agricultural products in a distribution center.

Box storage aspire system

In general, the following conditions are used for long-term storage.

products

Table potatoes
Chips potatoes
French fries potatoes
Seed potatoes
Onions
Carrots
Cabbage
Fruits

*ppm is maximum CO2 levels parts per million



temperature

4-6 °C
7-12 °C
5-8 °C
2-4 °C
1-2 °C
0-1 °C
0-1 °C

humidity

92%
92%
92%
85%
65-75%
95-98%
90-95%

CO₂ PPM*

7000 ppm
2750 ppm
3000 ppm
5000 ppm
< 10.000 ppm
< 10.000 ppm
< 10.000 ppm

Components

2017-04-05T08:35:31+02:00

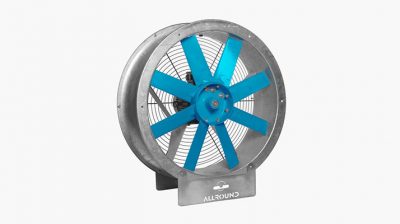

Fans

Ventilation of agricultural products
--

GO TO

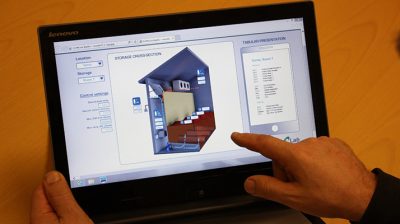

PRICE INDICATOR OF STORAGE SOLUTION

This Tool is made to provide you with a quick indication of the needed investment to turn an existing building into a storage facility for agricultural products.
GO TO

Airflow

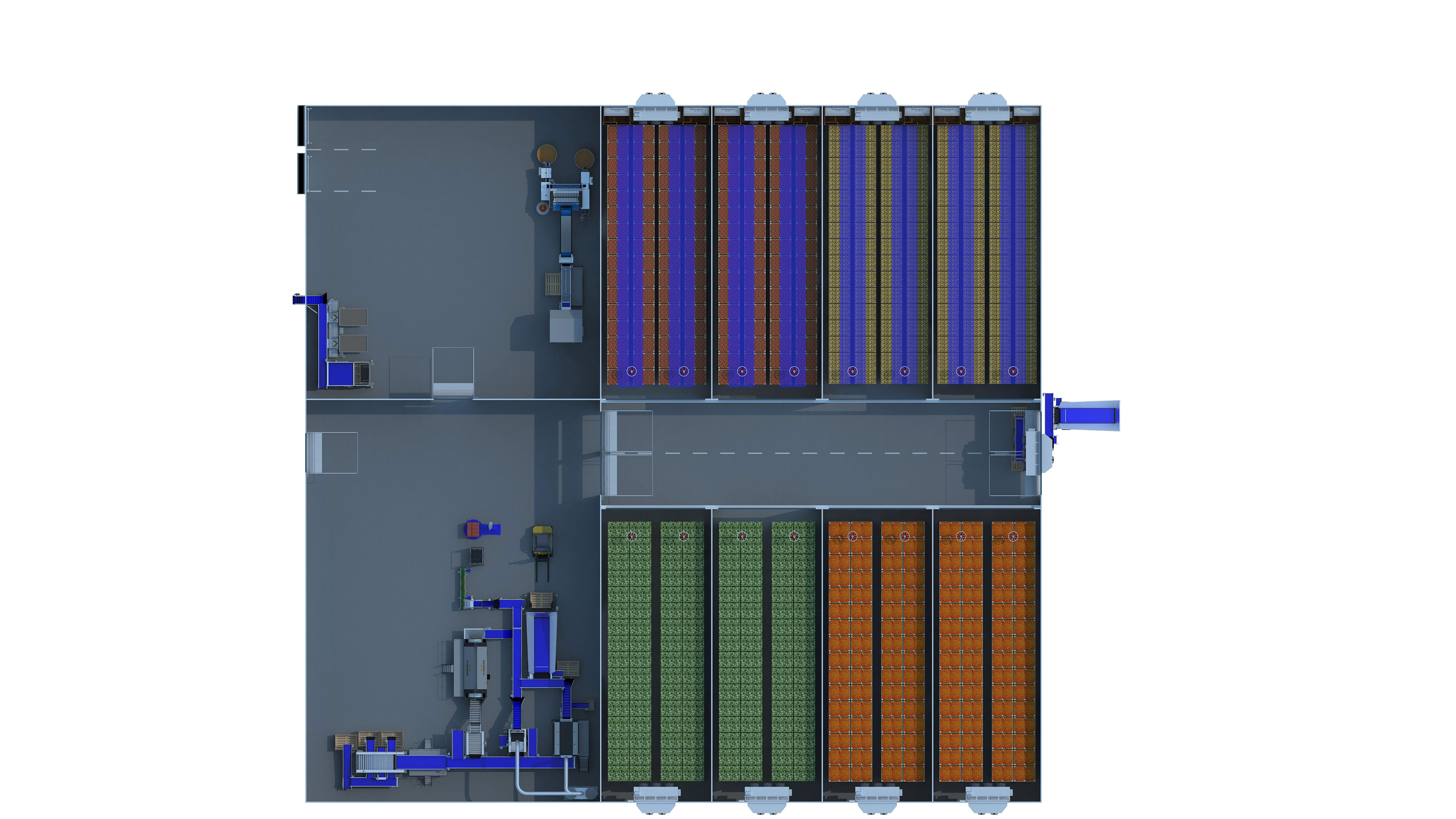

Product flow

  1. The product will go after the Pre-Grader via the Product belt to the Elevator and then to the Box filler.
  2. The boxes are getting loaded to be placed in the storage or processing line.
